Description
The Countess 3 Automated Cell Counter is a benchtop cell counting system equipped with an advanced machine-learning algorithm, ruggedized optics, fully-automated focus and lighting, and image analysis software for rapid assessment of primary and immortalized cell samples
• Accurate—eliminates the subjectivity of manual cell counting and user-to-user variability
• Fast—counts live and dead cells, measures viability, and reports average cell size with a single touch in about 20 seconds
• Convenient—requires no cleaning or routine maintenance; flush-mounted high-resolution capacitive touchscreen and simple user interface provide quick startup, require minimal training, and offer automatic saving of data to USB or cloud
The Countess 3 Automated Cell Counter works in two simple steps:
1. Mix 10 µL of sample with 10 µL of trypan blue and pipet into a disposable Countess chamber slide.
2. Insert the slide into the instrument. Rapid Capture and Auto-Save modes allow cell counting with a single touch. Focus, lighting, and file saving are executed automatically.
Get accurate cell counts
The Countess 3 Automated Cell Counter uses trypan blue staining combined with auto-focus and lighting driven by a machine-learning image analysis algorithm to obtain accurate cell and viability counts. The measurement range extends from 1 × 104 to 1 × 107 cells/mL (the optimal range is 1 × 105 to 4 × 106 cells/mL), which is broader than that of a hemocytometer.
Transfer data and images to your PC or cloud
Using the USB port on the Countess 3 Automated Cell Counter and any USB drive, you can save your cell count results and images and transfer them to your PC. (For your convenience, a USB drive and WiFI dongle are supplied with the Countess 3 instrument).

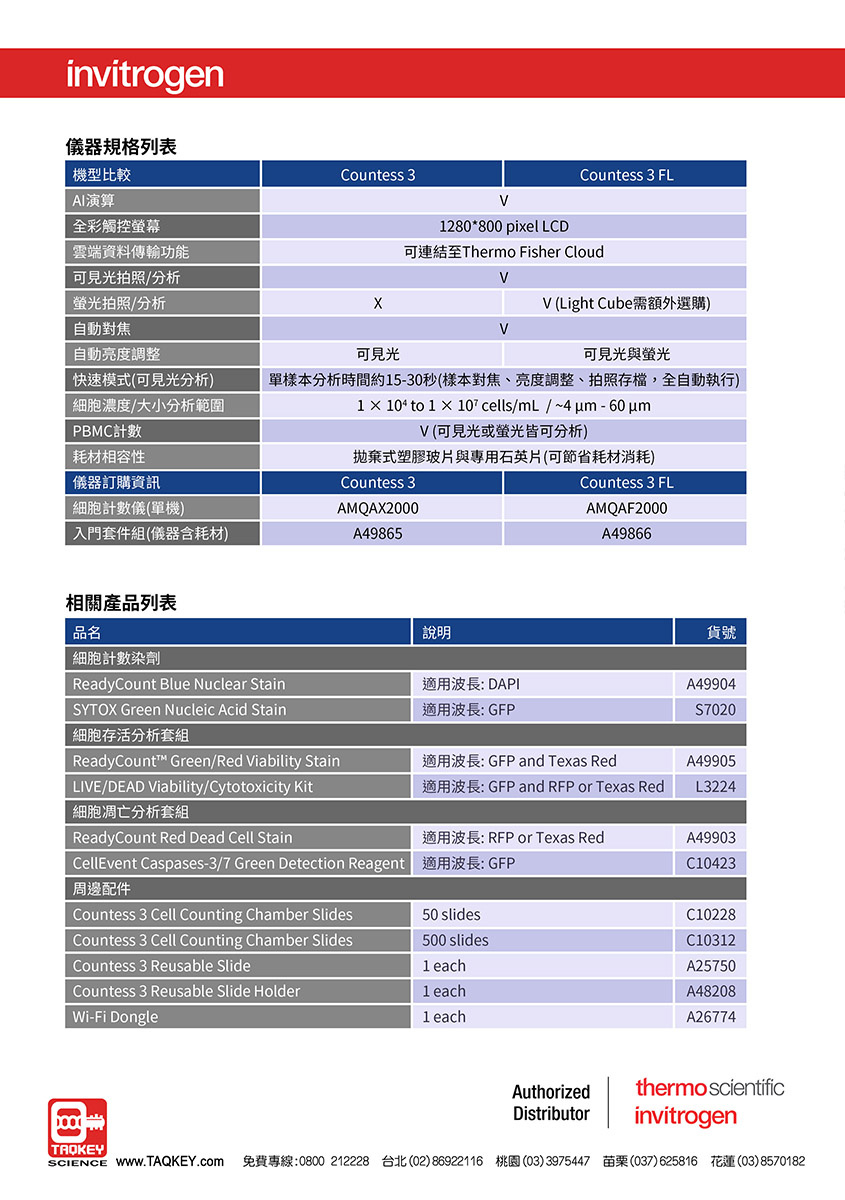

Specifications
DATA OUTPUTS: | CSV, PNG, TIF, JPG, FCS, & PDF |
---|---|
DETECTION METHOD: | Brightfield |
DIMENSIONS: | 9 in. (228.6 mm) W x 5.5 in. (139.7 mm) D x 9 in. (228.6 mm) W |
DISPLAY: | LCD 1280 x 800 pixels |
FOR USE WITH: | Trypan Blue, Countess Chamber Slides, and Reusable Slide |
MEMORY: | Onboard & USB drive |
POWER REQUIREMENTS: | 100-240 VAC |
PRODUCT TYPE: | User-installed automated cell counter |
SHIPPING CONDITION: | Ambient |
WEIGHT: | 8 lb., 3.6 kg |
CERTIFICATIONS/COMPLIANCE: | RoHS |
INCLUDES: | Power supply, disposable & reusable slide holders, USB drive, 1 Box disposable chamber slides |
LIGHT SOURCE: | Brightfield |
